HE12997_001
HE12997_002
HE12997_003
HE12997_004
HE12997_005
HE12997_006
HE12997_007
HE12997_008

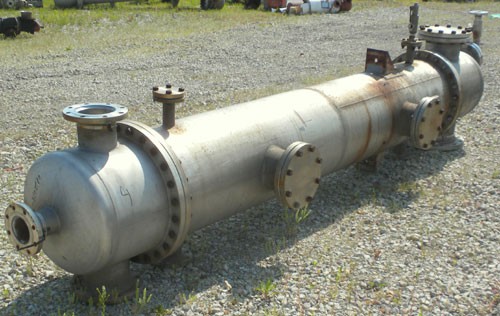

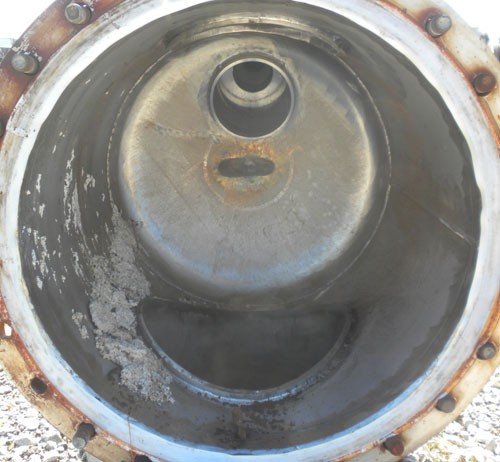

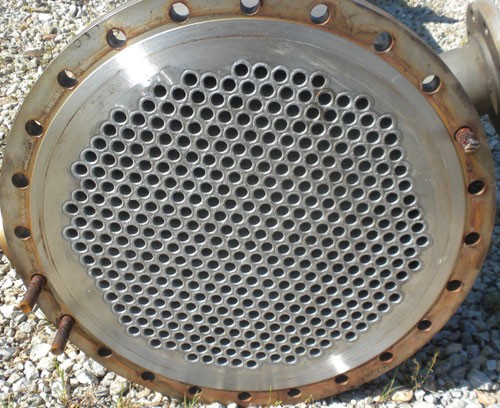

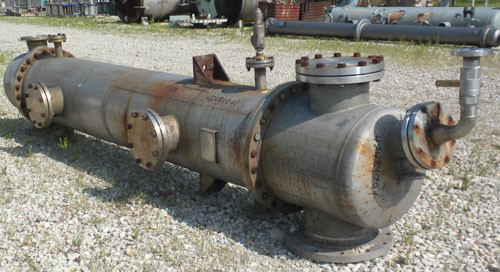

Wolfe mechanical heat exchanger

"USED – WOLFE MECHANICAL AND EQUIMENT SINGLE PASS SHELL AND TUBE HEAT EXCHANGER, 784 SQ FT. VERTICAL. 304 STAINLESS STEEL SHELL RATED 100 PSI @ 300 DEG.F…304 STAINLESS STEEL TUBESHEET, AND HEADS. OPENINGS SHELL (2) 2", (2) 4", (2) 8",10",14". SIDE LUG MOUNTS.

Read More
HE12998_001
HE12998_002
HE12998_003
HE12998_005
HE12998_006
HE12998_007
HE12998_008

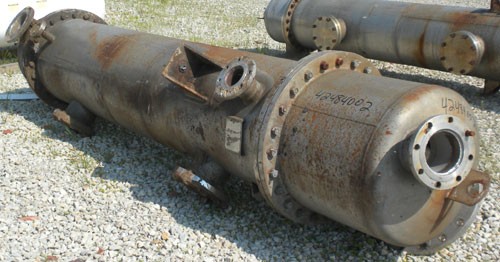

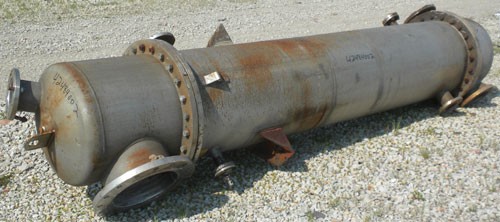

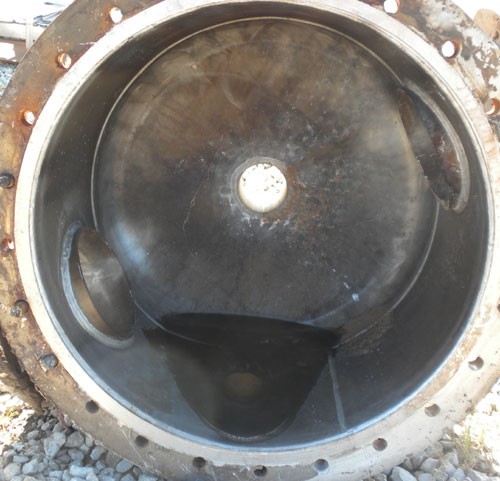

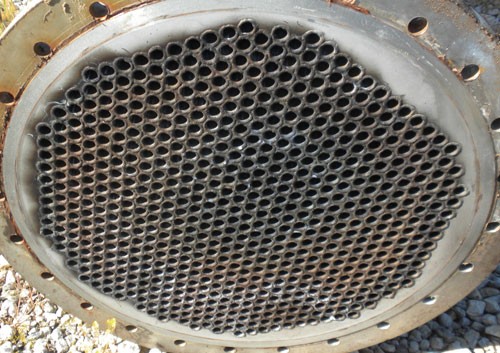

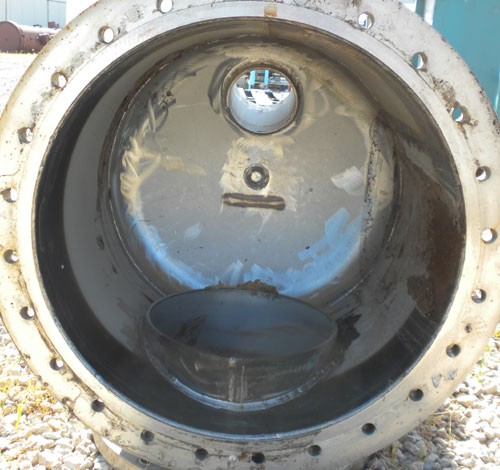

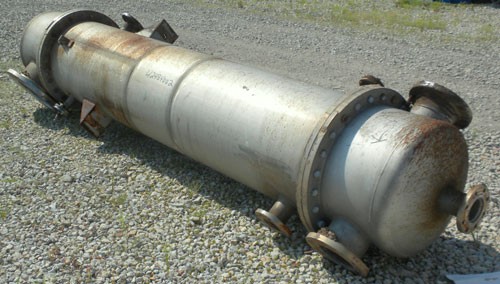

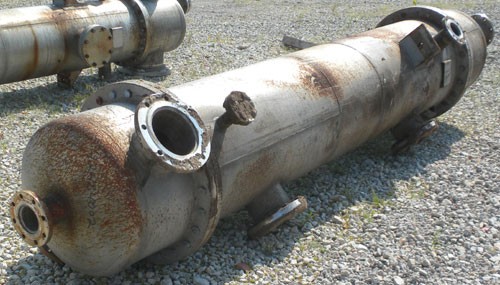

Wolfe mechanical heat exchanger

"USED – WOLFE MECHANICAL AND EQUIPMENT SINGLE PASS SHELL AND TUBE HEAT EXCHANGER, 1285 SQ FT., VERTICAL. 304 STAINLESS STEEL SHELL RATED 100 PSI @ 300 DEG.F..(656) 3/4" DIAMETER X 120" LONG 304 STAINLESS STEEL TUBES RATED 100 PSI @ 300 DEG. F..304 STAINLESS STEEL TUBESHEET AND HEADS. OPENINGS SHELL (2) 2", (2) 4", (2) 8", HEADS 4", 6",(2) 8", 16", SIDE LUG MOUNTS
ON HOLD BY AARONS 2/11/11

Read More
HE12999_001
HE12999_003
HE12999_005
HE12999_007

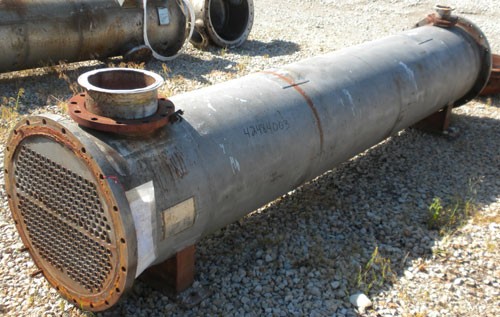

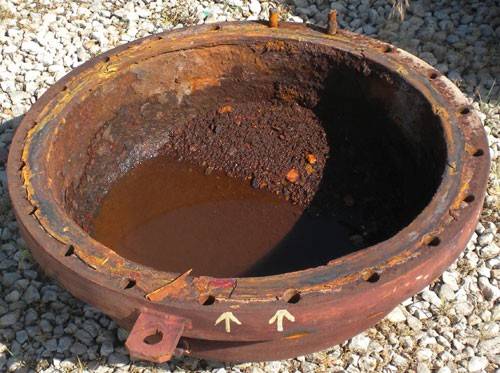

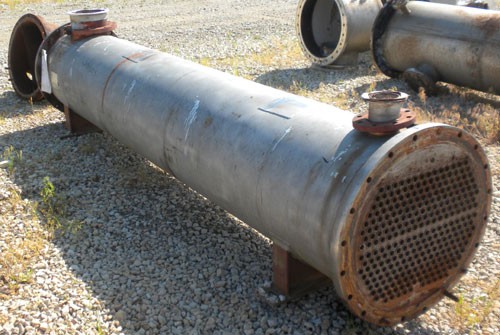

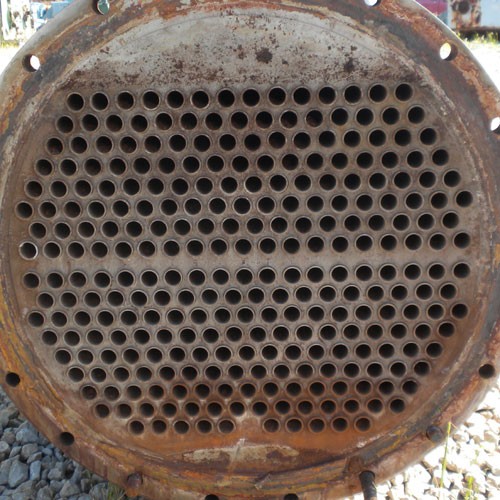

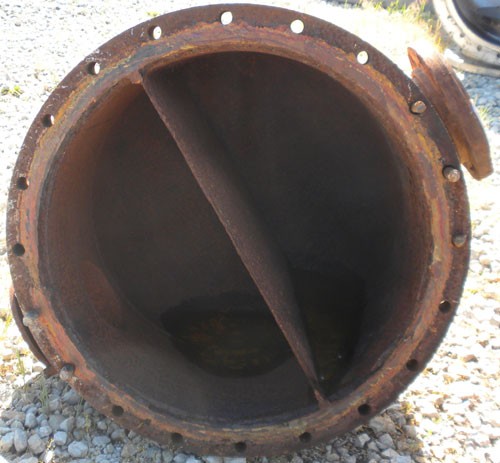

Process engineering heat exchanger

USED-PROCESS ENGINEERING AND MACHINE MULTIPLE PASS SHELL AND TUBE HEAT EXCHANGER, 886 SQ FT, HORIZONTAL. 316 STAINLESS STEEL SHELL RATED 50 PSI @ 175 DEG.F..(282) 1" DIAMETER X 144" LONG. 316 STAINLESS STELL TUBES RATED 150 PSI @ 150 DEG. F..316 STAINLESS STEEL TUBESHEET, CARBON STEEL HEADS. OPENINGS SHELL (2) 4", 10", HEADS (2)6"

Read More

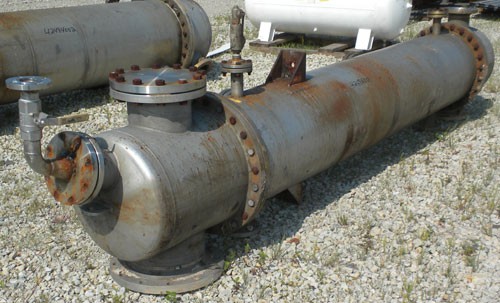

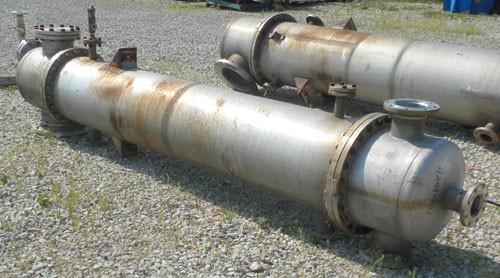

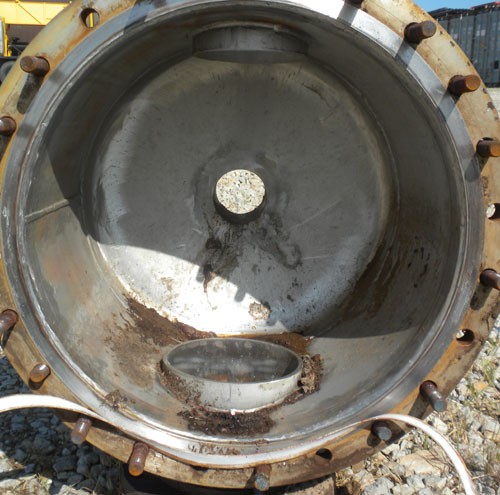

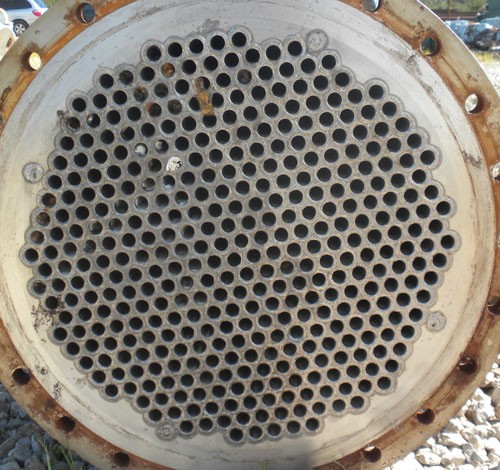

HE12997_001
HE12997_002
HE12997_003
HE12997_004
HE12997_005
HE12997_006
HE12997_007
HE12997_008

Wolfe mechanical heat exchanger

"USED – WOLFE MECHANICAL AND EQUIMENT SINGLE PASS SHELL AND TUBE HEAT EXCHANGER, 784 SQ FT. VERTICAL. 304 STAINLESS STEEL SHELL RATED 100 PSI @ 300 DEG.F…304 STAINLESS STEEL TUBESHEET, AND HEADS. OPENINGS SHELL (2) 2", (2) 4", (2) 8",10",14". SIDE LUG MOUNTS.

Read More

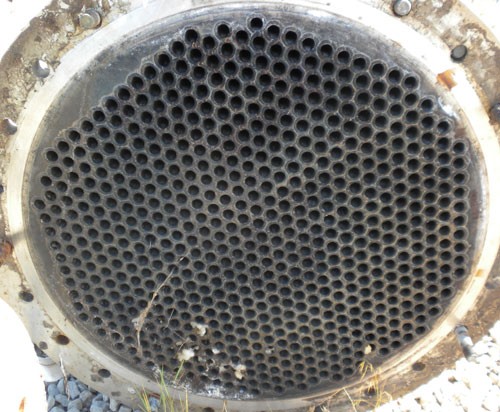

HE12998_001
HE12998_002
HE12998_003
HE12998_004
HE12998_005
HE12998_006
HE12998_007
HE12998_008

Wolfe mechanical heat exchanger

"USED – WOLFE MECHANICAL AND EQUIPMENT SINGLE PASS SHELL AND TUBE HEAT EXCHANGER, 1285 SQ FT., VERTICAL. 304 STAINLESS STEEL SHELL RATED 100 PSI @ 300 DEG.F..(656) 3/4" DIAMETER X 120" LONG 304 STAINLESS STEEL TUBES RATED 100 PSI @ 300 DEG. F..304 STAINLESS STEEL TUBESHEET AND HEADS. OPENINGS SHELL (2) 2", (2) 4", (2) 8", HEADS 4", 6",(2) 8", 16", SIDE LUG MOUNTS
ON HOLD BY AARONS 2/11/11

Read More

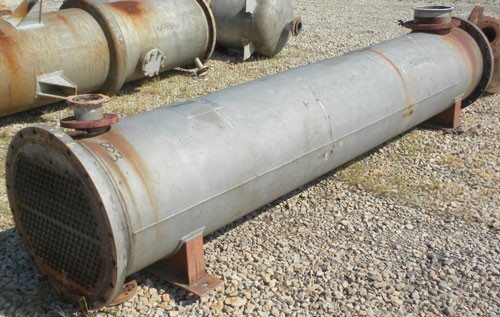

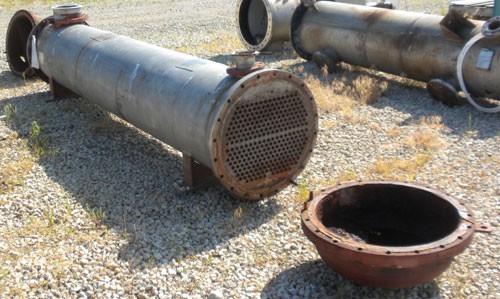

HE12999_001
HE12999_002
HE12999_003
HE12999_004
HE12999_005
HE12999_006
HE12999_007

Process engineering heat exchanger

USED-PROCESS ENGINEERING AND MACHINE MULTIPLE PASS SHELL AND TUBE HEAT EXCHANGER, 886 SQ FT, HORIZONTAL. 316 STAINLESS STEEL SHELL RATED 50 PSI @ 175 DEG.F..(282) 1" DIAMETER X 144" LONG. 316 STAINLESS STELL TUBES RATED 150 PSI @ 150 DEG. F..316 STAINLESS STEEL TUBESHEET, CARBON STEEL HEADS. OPENINGS SHELL (2) 4", 10", HEADS (2)6"

Read More
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA

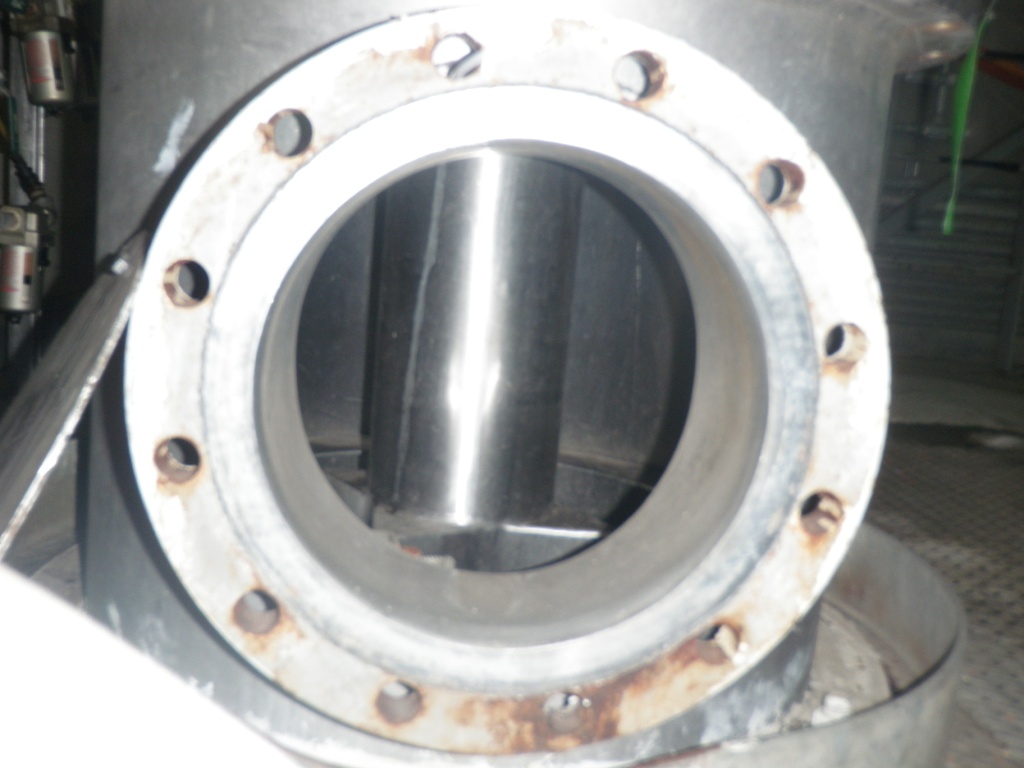

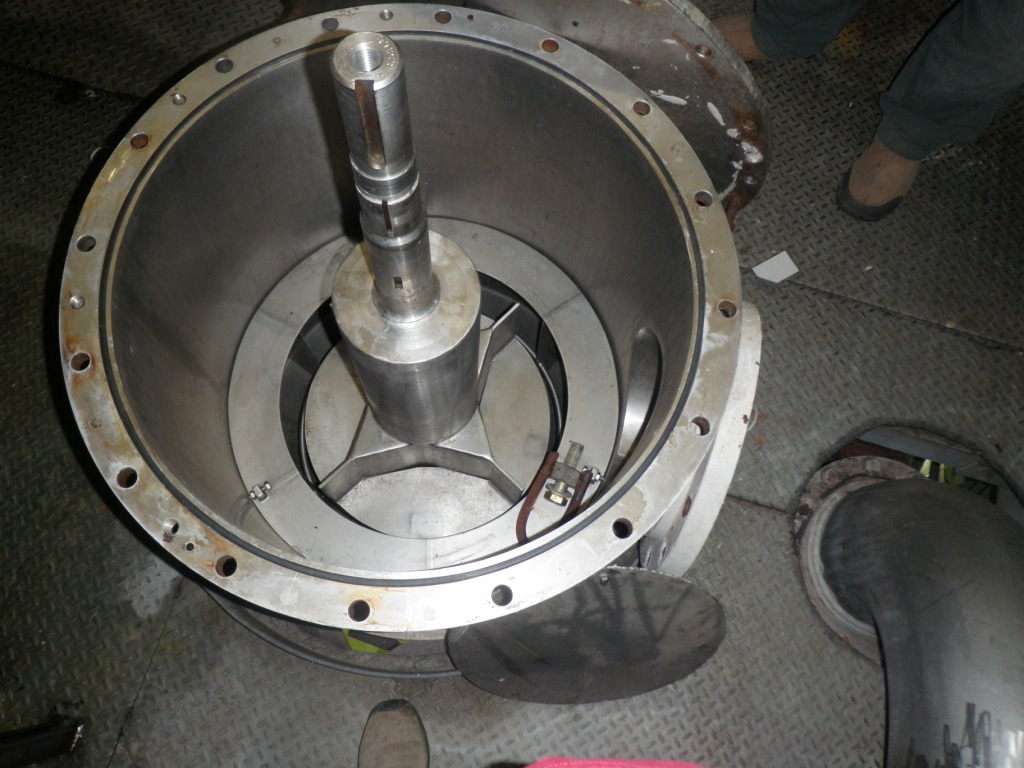

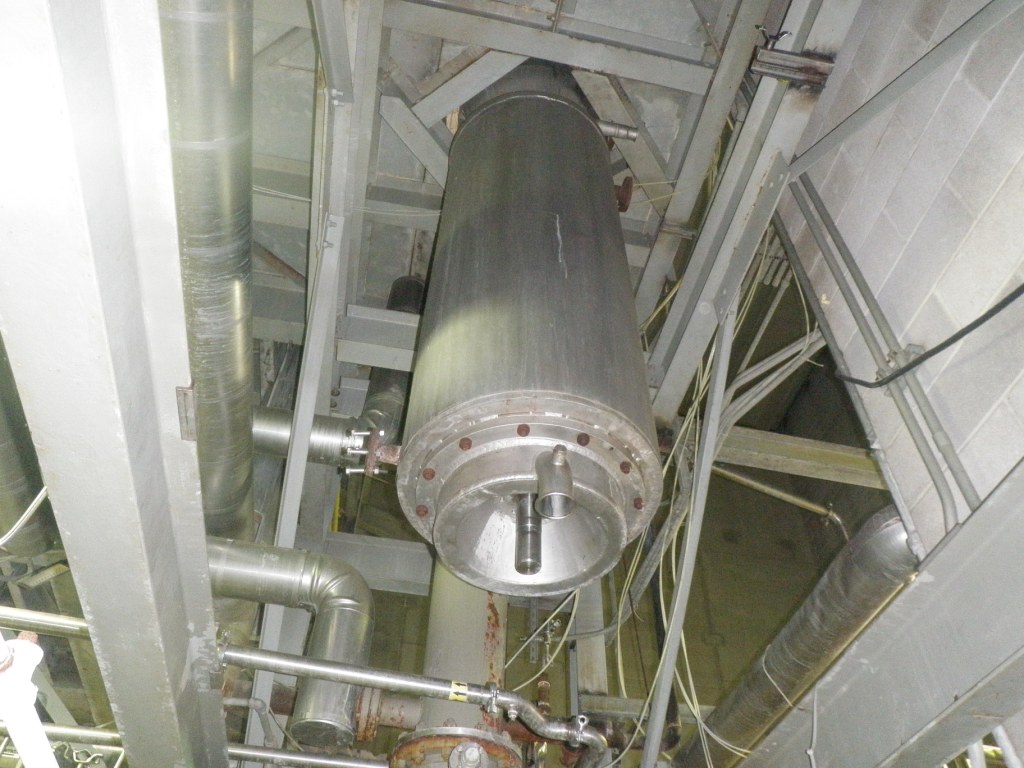

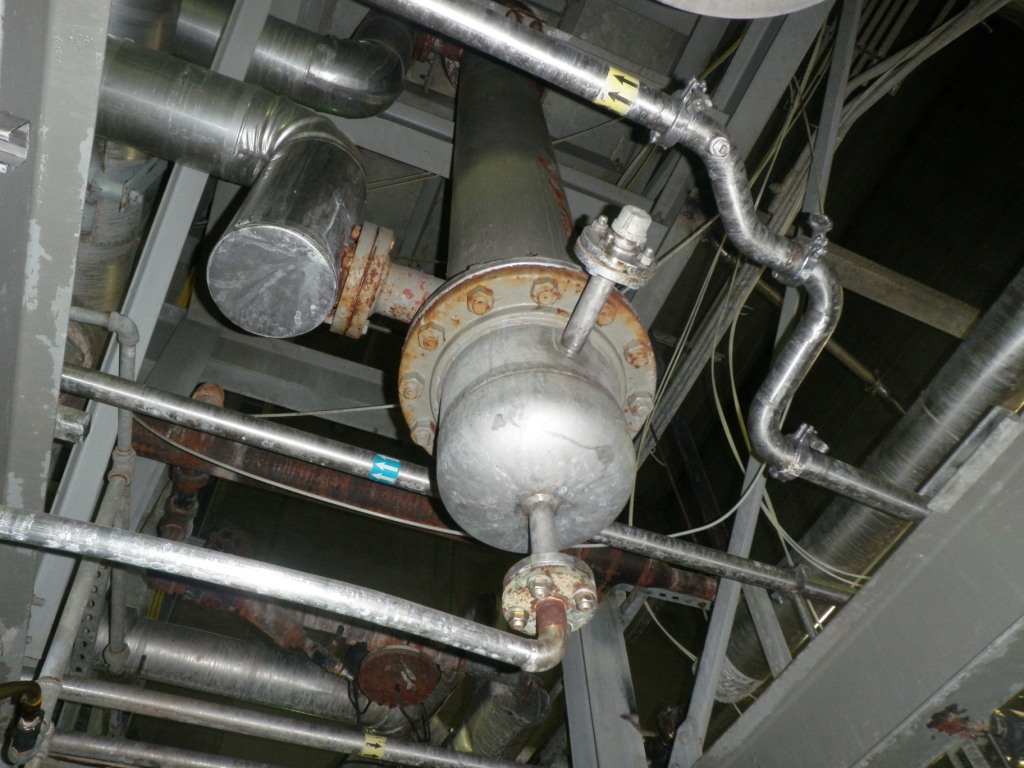

Votator Heat Exchangers

Description: Used- Votator Turba-Film Agitated Thin Film Evaporator, Model
18-072, 316L Stainless Steel. 26 Square feet heat transfer area. (1) 18"
Diameter x 72" long vertical chamber with a 4 point rotor. Internal rated FV
at 40 to 400 degrees F. (1) Carbon steel thermal section rated 150 psi at 40
to 400 degrees F. 2 Tri-clamp feed, 10" vapor outlet, 2" tri-clamp bottom
outlet. Driven by a 25 hp, 3/60/230/460 volt, 1170 rpm motor. Includes an
Industrial Process Equipment 133 square foot vertical shell & tube heat
exchanger, model 1ST10-96. 304 Stainless steel tubes, carbon steel shell,
both rated 150 psi at 300 degrees F.

Comments: AS IS PRICE NON-NEGOTIABLE -HE-13211 OAD VOTATOR 144"L X 46"W X
44"T, 3100#, HT EX 150"L X 44"W X 30"T, 1200#, BOX 50"L X 42"W X 26"T, 950#.
PHOTOS 8/26/11. CERTIFIED BY CHERRY BURRELL, NB# 1209, SERIAL# A5263, BUILT
1991. HEAT EXCHANGER NB# 1050, SERIAL# 109-703, BUILT 1991. NB PAPERS IN AX
FILE. ERS#

Read More

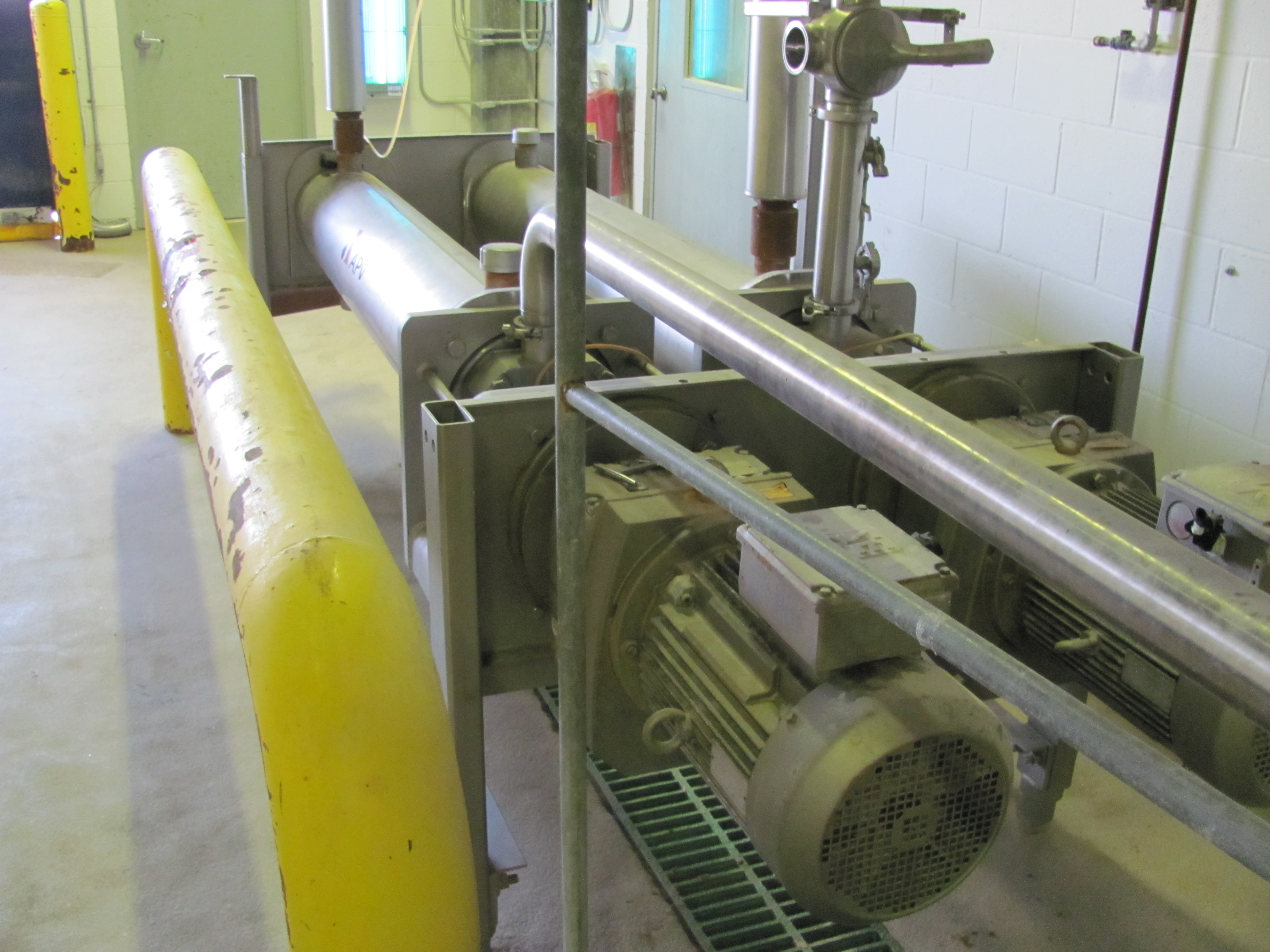

HE13067_001
HE13067_002
HE13067_003

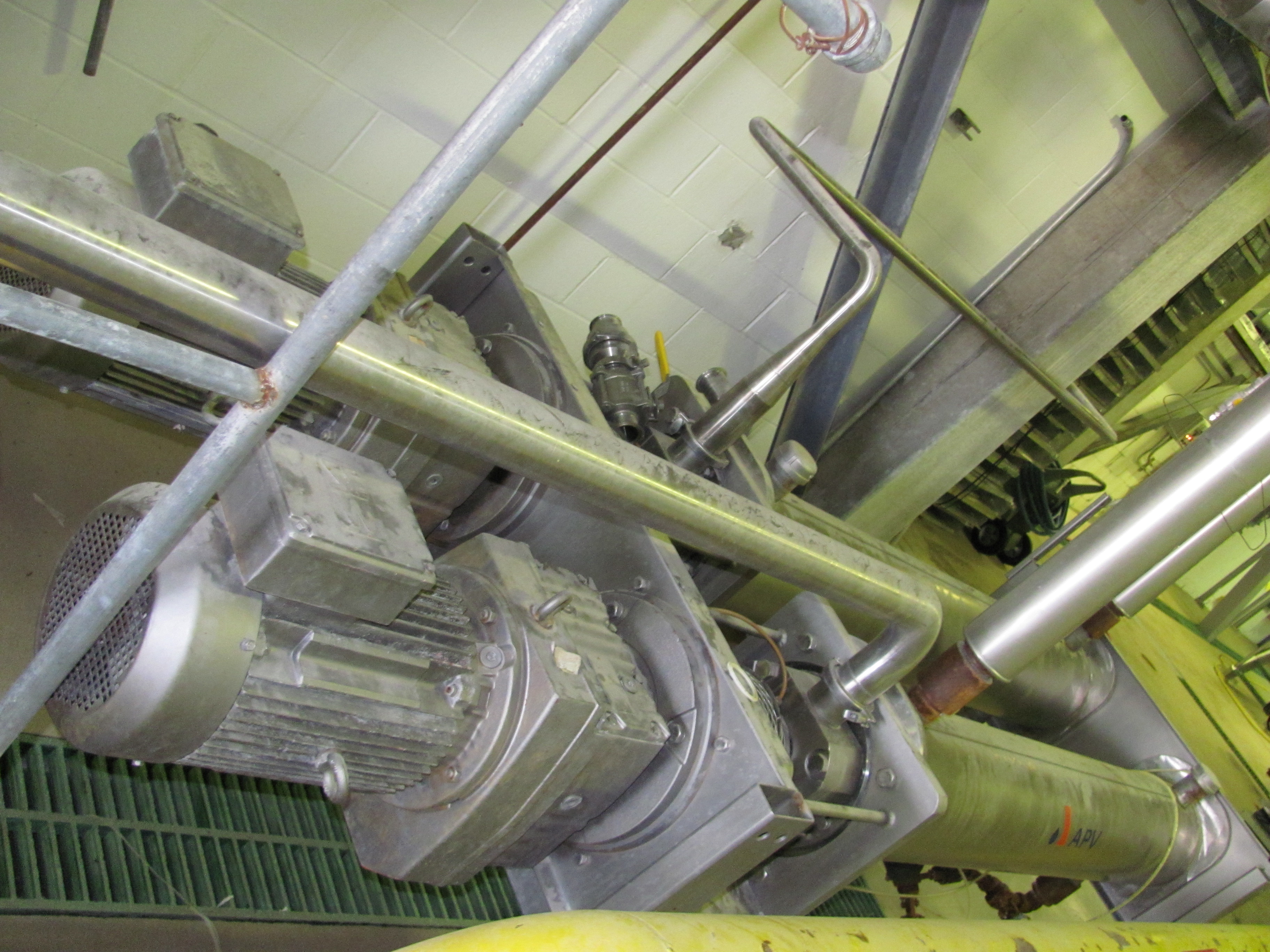

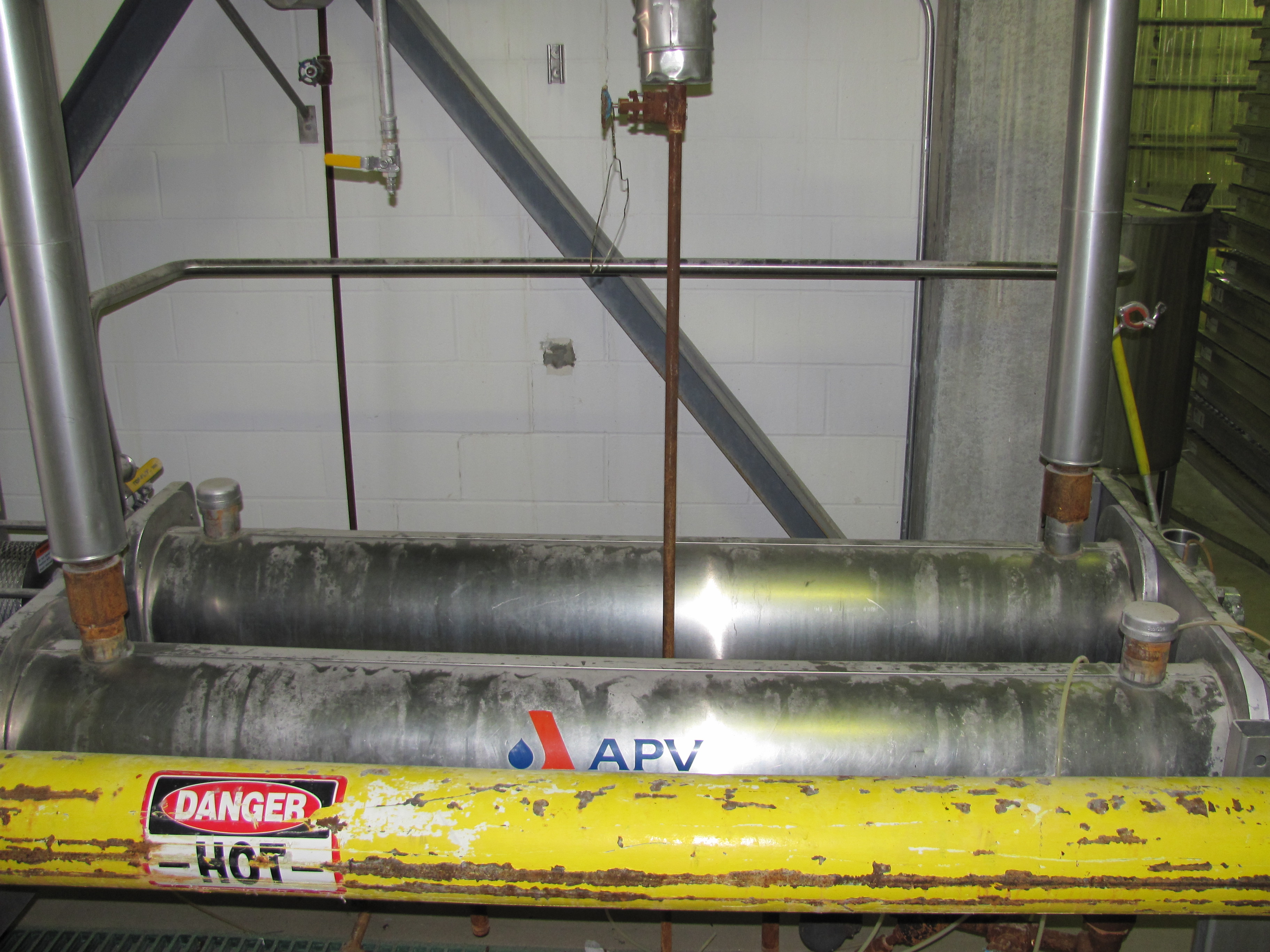

2- APV heat exchangers

2 – APV Parascrape Scraped surface heat exchangers. Model T884SSNN. 2 8" dia x 84" longClyinders , 29 sq ft Heat Transfer Area. Chrome Plated Nickel Material. Dasher model 60, 6" dia four rows of stainless steel blades, 20 hp 3/60/230-460 TEFC XT gear motor 250 rpm. Manufactured around July 2000.

Read More
