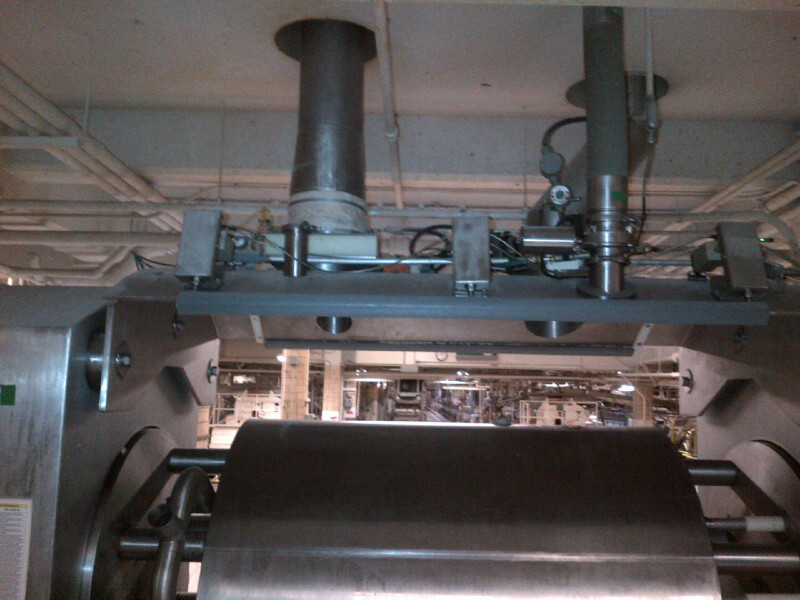

APV 1 Meter Sheeting Line

APV SHEETING LINE 43 ” W ROLLS X 11.5 ” DIA TO INCLUDE DOUGH DUMP AND CAGE , TWO ROLL PRE – SHEETER, TRANSFER CONVEYOR INTO FIRST GAUGE ROLL TO TRANSFER CONVEYOR INTO SECOND GAUGE ROLL ONTO FINIAL GAUGE ROLL TO SINGLE HEAD ROTARY CUTTER AND CUTTING TABLE ONTO OVEN PANNING CONVEYOR , PANNING CONVEYOR APX 120 ” L 58 ‘ L FROM DOUGH DUMP TO END OF PANNING CONVEYOR WITH CONTROL PANEL ALL EDDIE CURRENT DRIVEES , ROLLS, DRIVES AND BELTS ARE IN EXCELLENT CONDITION, LAST USED ON A THIN CRACKERAPV SHEETING LINE DOUGH DUMP WITH SAFTEY CAGE , ONE PRE SHEETER WITH HOPPER AND CONVEYOR , TWO SHEETING ROLLS , ONE FINISHING ROLL , TOP ROLL OF EACH SHEETER HAS IMPERGLON COATING FOR STICKY DOUGHS , SHEETER CONECTING CONVEYORS , RELAX CONVEYORS, CUTTING STATION , SCRAP CONVEYOR , PANNING CONVEYOR lINE
APX 58 ‘ L , EDDY CURRENT DRIVES RECENTLY REBUILT, WITH CONTROL PANEL

Read More
IMG_1481
IMG_1482
IMG_1484
IMG_1485
IMG_1486
IMG_2095
IMG_2095 – Copy
IMG_2093
IMG_2093 – Copy
IMG_2088
IMG_1487
DSC07871
DSC07872
DSC07873
DSC07874
DSC07875
DSC07876
DSC07877

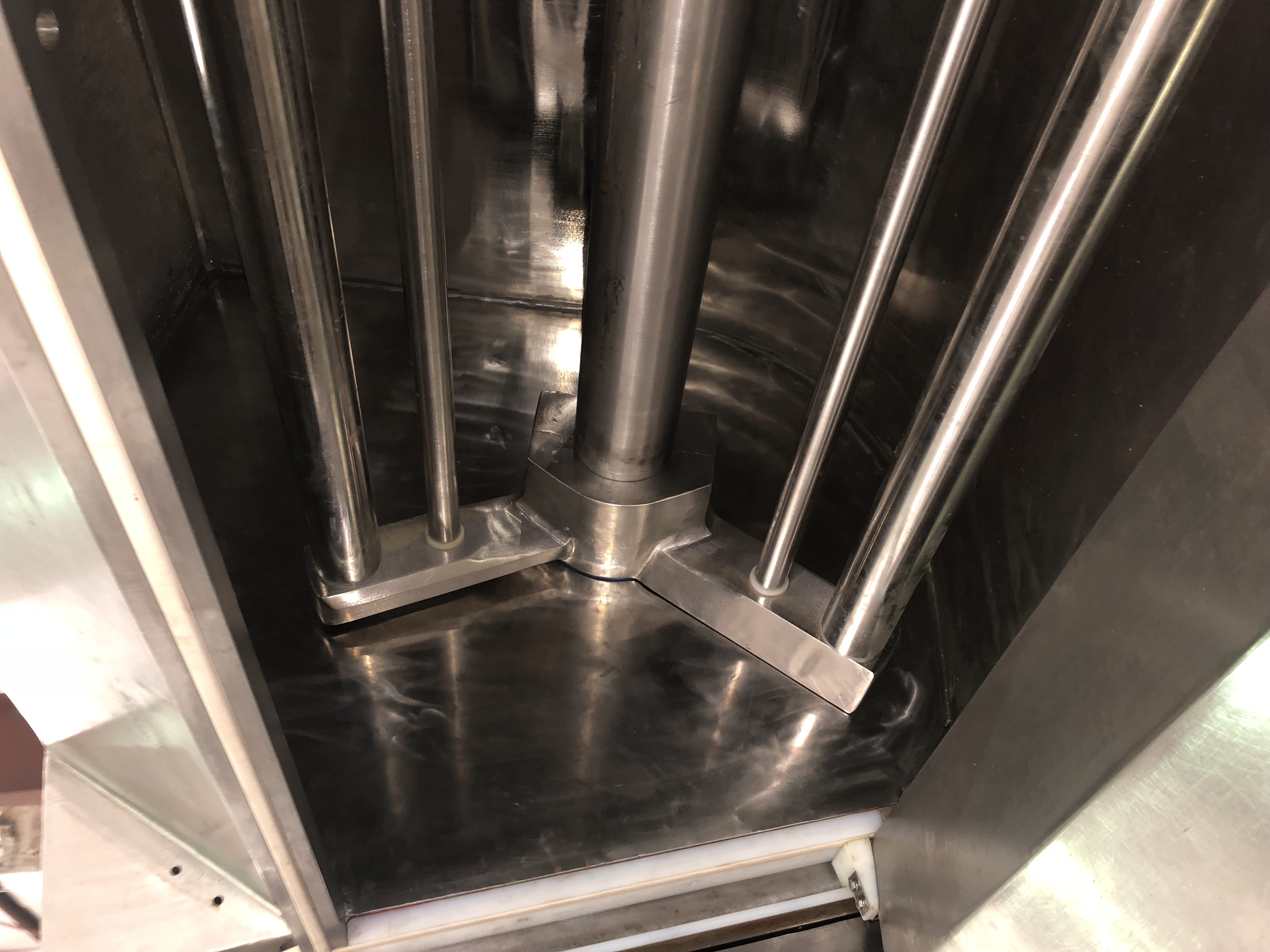

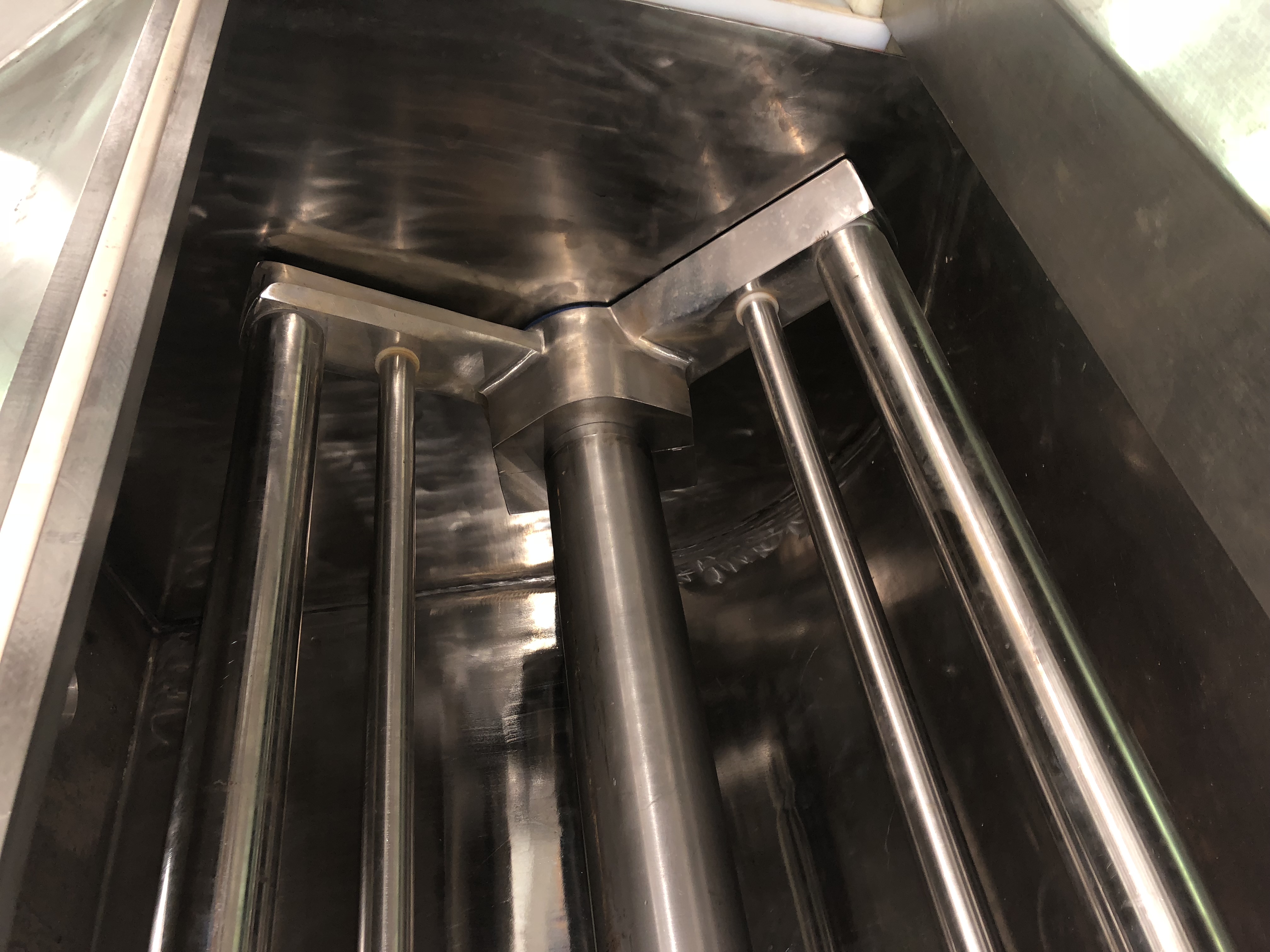

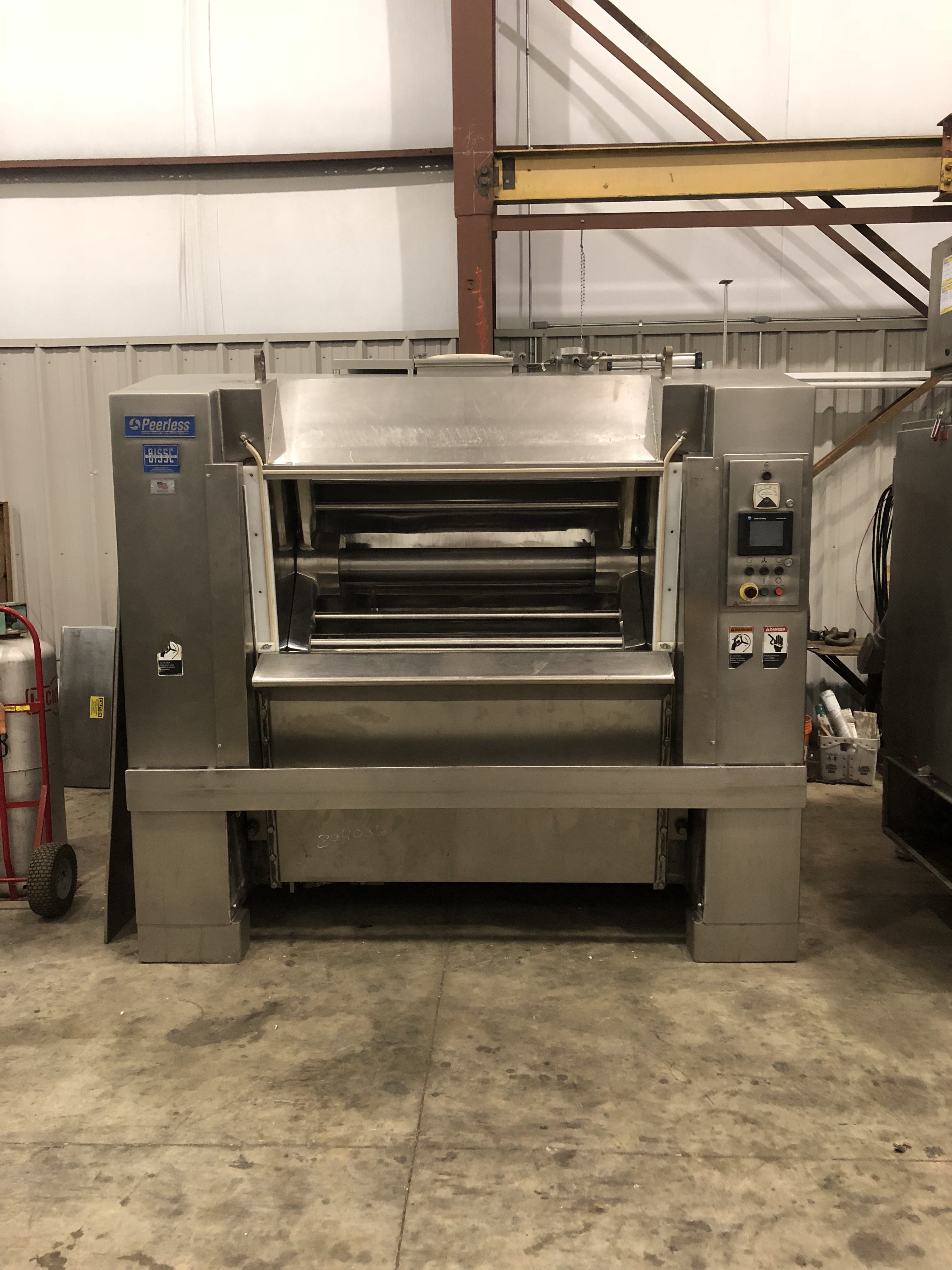

16HSFD Peerless Roller Bar Mixer

Used-Peerless Dough Mixer, Model 16HSFD, 16 HSFD High Speed Frozen Dough) 1600 lbs. capacity. 47.6 cuft. capacity. Stainless steel. to include main drive motor 100/50 hp 1760/860 3/6/480 frame 445 us
recondition of the mixer : electrical prints on file
Paint all carbon steel parts, Clean and polish stainless steel, Replace worn hydraulic hoses,
Check, repair,replace seals & bearings, where needed New electrical controls to include : Enclosures will be NEMA 4 size 4 and 5 Soft Start Starters , Allan-Bradley safety system programmed to the sequence as discussed below, Operator Interface consisting of : 2 Hand control for jog Emergency stop & reset,
Forward and reverse selector , Start stop push button
Runtime cycle timer, Electrical system will be run by 480volt power and 24vdc control power with some 120volts to be used. Safety Circuit A redundant safety proximity switch will be supplied for the lid access area. An E-stop push button will be supplied as part of the overall safety protection. Both the switches and push buttons will be wired to a programmed safety monitoring system. The unit will run if its in the full upright position and the lid is closed and verified. The unit can be jogged if the mixer is fully tilted using the 2 hand controls.

Read More
PSG-Lee-RP-8TZ-36_71973001_ds
PSG-Lee-RP-8TZ-36_71973001_dt
PSG-Lee-RP-8TZ-36_71973001_dq
PSG-Lee-RP-8TZ-36_71973001_dr
PSG-Lee-RP-8TZ-36_71973001_do
PSG-Lee-RP-8TZ-36_71973001_dp
PSG-Lee-RP-8TZ-36_71973001_dn
PSG-Lee-RP-8TZ-36_71973001_dm
PSG-Lee-RP-8TZ-36_71973001_dl
PSG-Lee-RP-8TZ-36_71973001_dk
PSG-Lee-RP-8TZ-36_71973001_dj
PSG-Lee-RP-8TZ-36_71973001_di
PSG-Lee-RP-8TZ-36_71973001_dg
PSG-Lee-RP-8TZ-36_71973001_dh
PSG-Lee-RP-8TZ-36_71973001_dd
PSG-Lee-RP-8TZ-36_71973001_df
PSG-Lee-RP-8TZ-36_71973001_de
PSG-Lee-RP-8TZ-36_71973001_db
PSG-Lee-RP-8TZ-36_71973001_dc
PSG-Lee-RP-8TZ-36_71973001_cz
PSG-Lee-RP-8TZ-36_71973001_da
PSG-Lee-RP-8TZ-36_71973001_cy
PSG-Lee-RP-8TZ-36_71973001_cx
PSG-Lee-RP-8TZ-36_71973001_cw
PSG-Lee-RP-8TZ-36_71973001_cv
PSG-Lee-RP-8TZ-36_71973001_cu
PSG-Lee-RP-8TZ-36_71973001_ct
PSG-Lee-RP-8TZ-36_71973001_cr
PSG-Lee-RP-8TZ-36_71973001_cs
PSG-Lee-RP-8TZ-36_71973001_cq
PSG-Lee-RP-8TZ-36_71973001_cp
PSG-Lee-RP-8TZ-36_71973001_co
PSG-Lee-RP-8TZ-36_71973001_cl
PSG-Lee-RP-8TZ-36_71973001_cn
PSG-Lee-RP-8TZ-36_71973001_cm
PSG-Lee-RP-8TZ-36_71973001_cj
PSG-Lee-RP-8TZ-36_71973001_ck
PSG-Lee-RP-8TZ-36_71973001_ci
PSG-Lee-RP-8TZ-36_71973001_cg
PSG-Lee-RP-8TZ-36_71973001_ch
PSG-Lee-RP-8TZ-36_71973001_cf
PSG-Lee-RP-8TZ-36_71973001_ce
PSG-Lee-RP-8TZ-36_71973001_cd
PSG-Lee-RP-8TZ-36_71973001_cb
PSG-Lee-RP-8TZ-36_71973001_cc
PSG-Lee-RP-8TZ-36_71973001_by
PSG-Lee-RP-8TZ-36_71973001_ca
PSG-Lee-RP-8TZ-36_71973001_bz
PSG-Lee-RP-8TZ-36_71973001_bx
PSG-Lee-RP-8TZ-36_71973001_bw
PSG-Lee-RP-8TZ-36_71973001_bv
PSG-Lee-RP-8TZ-36_71973001_bt
PSG-Lee-RP-8TZ-36_71973001_bu
PSG-Lee-RP-8TZ-36_71973001_bs
PSG-Lee-RP-8TZ-36_71973001_bq
PSG-Lee-RP-8TZ-36_71973001_br
PSG-Lee-RP-8TZ-36_71973001_bo
PSG-Lee-RP-8TZ-36_71973001_bp
PSG-Lee-RP-8TZ-36_71973001_bn
PSG-Lee-RP-8TZ-36_71973001_bm
PSG-Lee-RP-8TZ-36_71973001_bl
PSG-Lee-RP-8TZ-36_71973001_bj
PSG-Lee-RP-8TZ-36_71973001_bk
PSG-Lee-RP-8TZ-36_71973001_bi
PSG-Lee-RP-8TZ-36_71973001_bf
PSG-Lee-RP-8TZ-36_71973001_bg
PSG-Lee-RP-8TZ-36_71973001_bh
PSG-Lee-RP-8TZ-36_71973001_be
PSG-Lee-RP-8TZ-36_71973001_bd
PSG-Lee-RP-8TZ-36_71973001_bc
PSG-Lee-RP-8TZ-36_71973001_bb
PSG-Lee-RP-8TZ-36_71973001_az
PSG-Lee-RP-8TZ-36_71973001_ba
PSG-Lee-RP-8TZ-36_71973001_ay
PSG-Lee-RP-8TZ-36_71973001_aw
PSG-Lee-RP-8TZ-36_71973001_ax
PSG-Lee-RP-8TZ-36_71973001_au
PSG-Lee-RP-8TZ-36_71973001_av
PSG-Lee-RP-8TZ-36_71973001_as
PSG-Lee-RP-8TZ-36_71973001_at
PSG-Lee-RP-8TZ-36_71973001_ar
PSG-Lee-RP-8TZ-36_71973001_aq
PSG-Lee-RP-8TZ-36_71973001_ap
PSG-Lee-RP-8TZ-36_71973001_an
PSG-Lee-RP-8TZ-36_71973001_ao
PSG-Lee-RP-8TZ-36_71973001_am
PSG-Lee-RP-8TZ-36_71973001_ak
PSG-Lee-RP-8TZ-36_71973001_al
PSG-Lee-RP-8TZ-36_71973001_aj
PSG-Lee-RP-8TZ-36_71973001_ai
PSG-Lee-RP-8TZ-36_71973001_ah
PSG-Lee-RP-8TZ-36_71973001_af
PSG-Lee-RP-8TZ-36_71973001_ae
PSG-Lee-RP-8TZ-36_71973001_ag
PSG-Lee-RP-8TZ-36_71973001_ac
PSG-Lee-RP-8TZ-36_71973001_ad
PSG-Lee-RP-8TZ-36_71973001_ab
20180626_083643
PSG-Lee-RP-8TZ-36_71973001_aa
20180626_083710
20180626_083632
20180626_083641
20180626_083612
20180626_083559
20180626_083545
PSG-Lee-RP-8TZ-36_71973001_du
20180626_083553

PSG Lee Stand UP pre-made pouch packager, model RP-84T/Z-36

d-PSG Lee horizontal pre-made pouch packager, model RP-84T/Z-36, with Coder, Lee Pack Auger Filler with bulk feeder, and finished pouch conveyor metal detector. Machine is capable of speeds from 15 to 40 pouches per minute, subject to pouch and product variables. Pouch size range: 6.3″ – 11.4″ or 160mm – 290mm (width) x 6″ – 16.9″ or 150mm – 430mm (height). Weight Range: up to 4 lbs or 2 kg. Designed for pouches with gusset, stand-up bottom, and zipper seal. Has an 8-station turret, extended pouch magazine, PSG-Lee Servo (Mitsubishi) auger filler. Air: 10 cfm at 90 psi. Electrical: 3/60/220V. Has Allen Bradley SLC 5/05 and and Allen Bradley Panelview 600 HMI touchscreen. Offered in Good Running Condition. Controls can be upgraded at an additional cost. Ask your AEK sales representative for details. Platform pictured is not included. Last running 32oz pouches of black pepper with zipper opening attachment.

Read More
IMG_1651
IMG_1652
IMG_1653
IMG_1654
IMG_1655
IMG_1656
IMG_1657
IMG_1658
IMG_1660
IMG_1661
IMG_1663
IMG_1664
IMG_1678
IMG_1679
IMG_1680
IMG_1681
IMG_1682
IMG_1683
IMG_1684
IMG_1685
MX14407-1
MX14407-2
MX14407-3
MX14407-4
MX14407-5
MX14407-6
MX14407-7
MX14407-9
MX14407-10
MX14407-11
MX14407-12
MX14407-13
MX14407-14
MX14407-15
MX14407-16
MX14407-17

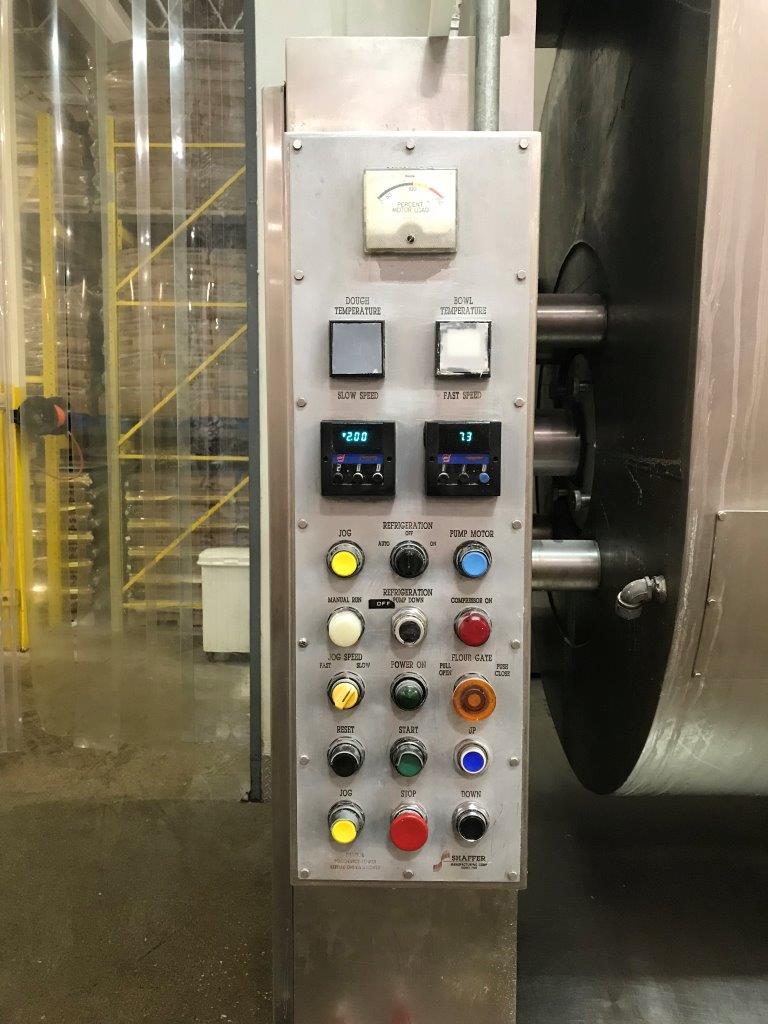

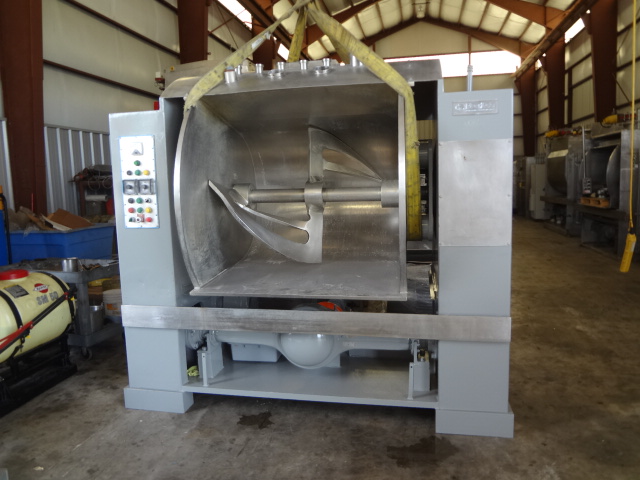

Shaffer Single Arm Mixer

SHAFFER SINGLE ARM MIXER 3/60/575, 50/25 HP , 1180 / 585 RPM , BOWL IS JACKETED,
MIXER OAD 97″ H X 110 W X 74 D, BOWL DIMENSIONS 62 W X 44 1/2 D X 60 H , WITH STARTER AND DISCONNECT PANEL , PLC AND TOUCH SCREEN, 16,000 LBS SHIP WT.
100 DEGREE BOWL TILT BOWL LIP TO GROUND INCLUDING 6 ” SQUARE FLOOR ANCHORING TUBES 34 ” STANDARD BOWL LIP MIXER IN EXCELLENT CONDITION LOW HOURS RECENTLY REBUILT

Read More
P8140164
P8140166
P8140165
P8140163
P8140132
P8140148
P8140126
P8140128
P8140127
P8140122
P8140129
P8140110
P8140112
P8140104
P8140113
P8140095
P8140094

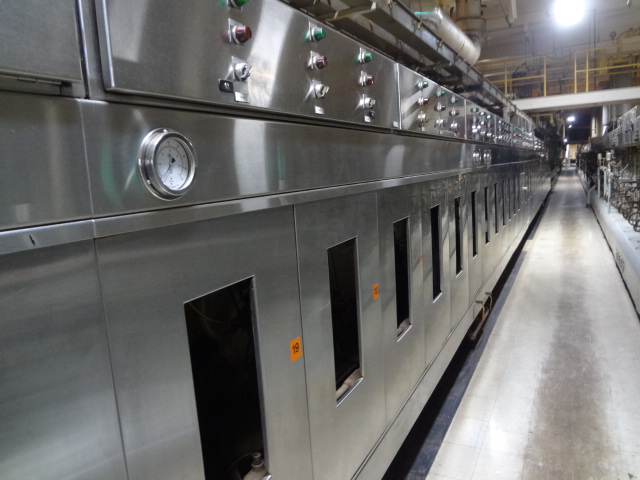

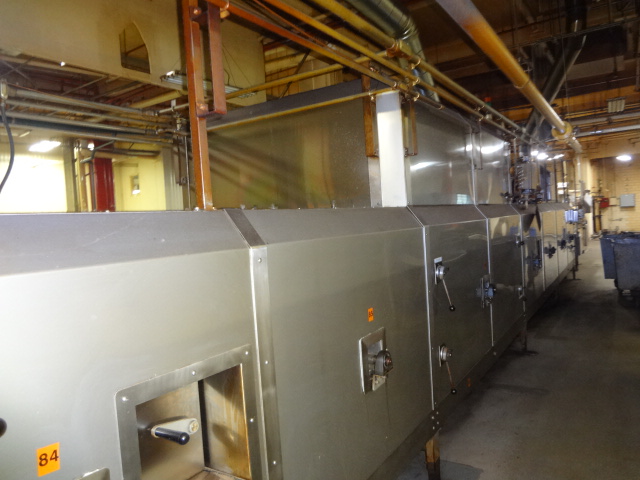

MEINCKE / DFE OVEN

1 Meter X 150 ‘ L 5 Zone 500,000 btu per zone wire mesh mfg 2006 all stainless steel skin Danish Food equipment / Meincke, impingement convection oven, Order 109066 , 5 zone 500,000 btu per zone ,
40.5 in. wide wire mesh belt , OAD: 156.5 ft. long , 142 ‘ l overall bake bake chamber
oven aperture 49 in. wide x 5 ” high, 74 ” long infeed, 96 ” long discharge, 14 intermediate sections 80 ” long X 72 ” wide x 42 ” high plus 28 ” legs , 5 burner sections are 87 ” long x 84″ wide x 72 ” high plus 28″ legs, control section 158 ” l x 72 w x 74 ” h plus 28 ” legs with plc controls A/B flex 700’s with A/B touch screen panel view plus 1000 , on 28 ” removable stainless steel legs , last used used on pizza shells burners are propane, orifice will need changed for natural gas , oven dismantled on buyers truck, will ship on three 53 ‘ van trailers , one van intermidate sections stacked two high legs off , one van with 5 burner sections, one van two terminal ends, wire mesh belt control panel section 5 skids total , all wires have been matched marked tagged and pulled back into oven control panel, oven is in excellent condition

Read More

Bosch TTF, TTC, TTL Triseal Carton Forming,Robotic Loading and Top Closing

Used- Bosch Triseal Carton Former, Loader and Closer. Line consists of Bosch Model TTF-2 former, Bosch TTL robotic loader, and Bosch TTC closer. Bosch TTF-2 former is capable of 60+ cpm (depending on size). Has a carton/tray size range of: 115mm to 445 mm or 4.5″ to 17.5″ (length) x 75mm – 254mm or 3″ – 10″ (width) x 19mm – 171mm or 3/4″ – 6-3/4″ (height). Includes Bosch TTL Robotic triseal carton top loader with product infeed. And Bosch TTC in-line triseal closer using Nordson Problue hot melt glue system. Also includes product and carton conveyors. Last running running wrapped slugs of crackers/biscuits. Allen Bradley PLC controls with AB HMI stations. Built 2011. 3/60/230V. CE Certified. Also available is Bosch HSE horizontal wrapper with Bosch FGM collator.

Read More

Bosch-Sigpack High-Speed Horizontal Flow Wrapper, Model HCS and FGM

Used- Bosch-Sigpack High-Speed Horizontal Flow Wrapper, Model HCS. Machine is capable of speeds up to 300 packages per minute, depending on product size and film. Has a package size range of 45 to 270 mm in length, up to 335 mm in width, and up to 130 mm in height. Includes Bosch-Sigpack product collator and transfer, Model FGM. Has Allen Bradley Logix 5562 PLC and Allen Bradley Kinetix 6000 servo drivers. Built 2011. Last used on snack biscuits and crackers. 3/50/60/380-480V.
